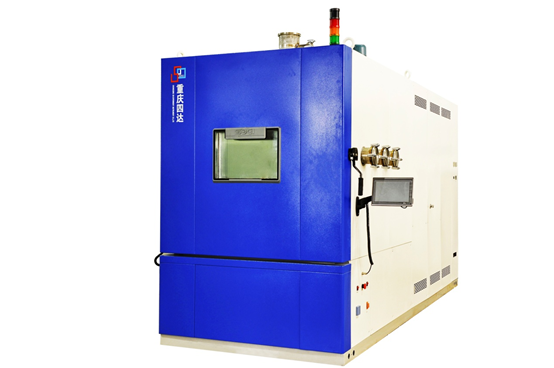

SDP series high and low temperature low pressure test chamber
I. Main technical indicators
1. Studio size: 1000D × 1000W × 1000H mm, internal volume is about 1000L
2. Dimensions: Approx. 3400D × 1400W × 2010H mm, excluding protruding parts such as controllers and test holes.
3. Temperature range: -70 ℃ ～ + 150 ℃
4. Temperature fluctuation: ≤ ± 0.5 ℃, normal pressure, no load
5. Temperature deviation: ± 2 ℃, normal pressure, no load
6. Temperature uniformity: ≤2 ℃, normal pressure, no load
7. Heating rate: + 20 ℃ → + 150 ℃ ≤60min
8. Cooling rate: + 20 ℃ → -65 ℃ ≤60min
9. Humidity range: humidity 20% ～ 98% RH (temperature + 20 ℃ ～ + 85 ℃)
10. Humidity deviation: ≤ + 2 -3% RH (> 75% RH), ≤ ± 5% RH (≤75% RH), under normal pressure and no-load conditions.
11. Pressure range: normal pressure to 0.5kPa
12. Decompression rate: normal pressure ～ 1.0kPa≤30min
13. Pressure recovery rate: ≤10.0kPa / min
14. Pressure deviation: normal pressure ～ 40kPa: ≤ ± 2kPa, 40KPa ～ 4kPa: ≤ ± 5% kPa, below 4kPa: ≤ ± 0.1kPa
15. Wind speed: variable frequency adjustment
16. Power: about 50kW
17. Noise: ≤75dB (A), measured at a height of 1.2 meters from the ground 1 meter away from the box.
18. Weight: 1900Kg
Second, rapid decompression device (optional)
To meet the requirements of fast buck. An independent rapid pressure reducing box is processed. The rapid pressure reducing box is composed of a shell component, a pressure-bearing component, a gate component, an interface, and a moving frame. Before the rapid pressure reduction, the user needs to connect external pipes.
1. Workshop size: 400mm deep x 500mm wide x 600mm long; the inner wall material is processed by 3.0 SUS304 / 2B, and a 5mm square tube is used as the pressure-reinforcing rib;
2. Outer dimensions: 530mm deep × 700mm wide × 880mm long, 1.2mm cold-rolled steel plate is used for the outer wall material, and the surface is painted white (the same color as the box)
3. The top of the box is reserved for connecting the pressure sensor interface, and the control sensor interface is located on the rear side of the box, which is convenient for the quick-decompression device to go out.
4. Quickly lower the pressure device for easy movement. Four Qidong lifting casters are installed below the frame; the moving frame is welded from ordinary steel, and the surface is plastic-sprayed;
5. Quick depressurization process: first reduce the fast depressurization tank to 75.2kPa by the vacuum pump of the test equipment. In order to increase the pumping speed of the fast depressurization device by the test chamber, first draw the test box to about 1kPa and start the connection test The box valve and the electric valve of the fast pressure reducing device realize the fast pressure reducing function. When the valve reaches 18.8kPa, the valve is closed. The auxiliary pump (intake valve) can be used to achieve constant pressure in the fast pressure reducing tank.
Third, product implementation standards
1. GB / T2423.1-2008 Test A: Low temperature test
2. GB / T2423.2-2008 Test B: Low temperature test
3. GB / T 2423.3-2006 Test Cab: Constant Damp Heat Test
4. GB / T 2423.4-2008 Test Db: Alternating Damp Heat Test
5. GB / T2423.21-2008 Test M: Low-pressure test method
6. GB / T2423.25-2008 Test Z / AM: Low temperature / low pressure comprehensive test
7. GB / T2423.26-2008 Test Z / BM: High temperature / low pressure comprehensive test
8. GJB150.1A-2009 General requirements
9. GJB150.2A-2009 Low pressure (altitude) test
10. GJB150.3A-2009 High temperature test
11. GJB150.4A-2009 low temperature test
12. GJB150.6-86 temperature-altitude test
13. GJB150.19-86 temperature-humidity-altitude test
14. DO16F rapid decompression test
15. GB / T 10586-2006 Damp heat test box technical conditions
16. GB / T 10590-2006 high and low temperature low pressure test chamber technical conditions
17. GB / T 10592-2008 high and low temperature test chamber technical standards
18. GB / T 5170.1-2008 Electrical and electronic industry environmental test equipment inspection methods
19. GB / T 5170.2-2008 Inspection methods for environmental test equipment for electric and electronic products Damp heat test equipment
20. GB / T 5170.5-2008 Inspection methods for environmental test equipment for electric and electronic products Damp heat test equipment
GB / T 5170.10-2008 Test methods for environmental testing equipment of electric and electronic products
SDP series high and low temperature low pressure test chambe
